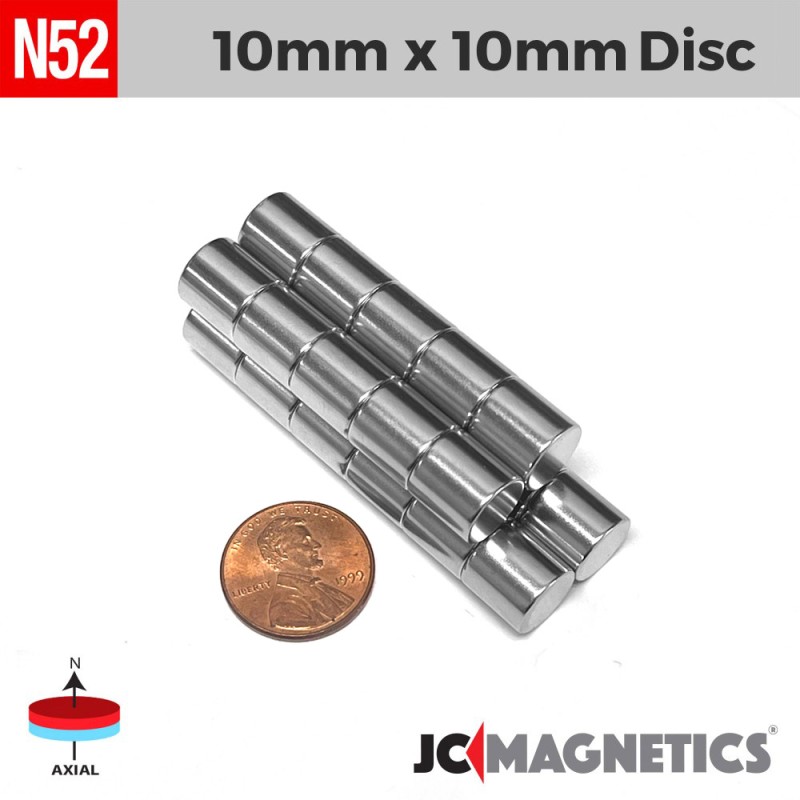

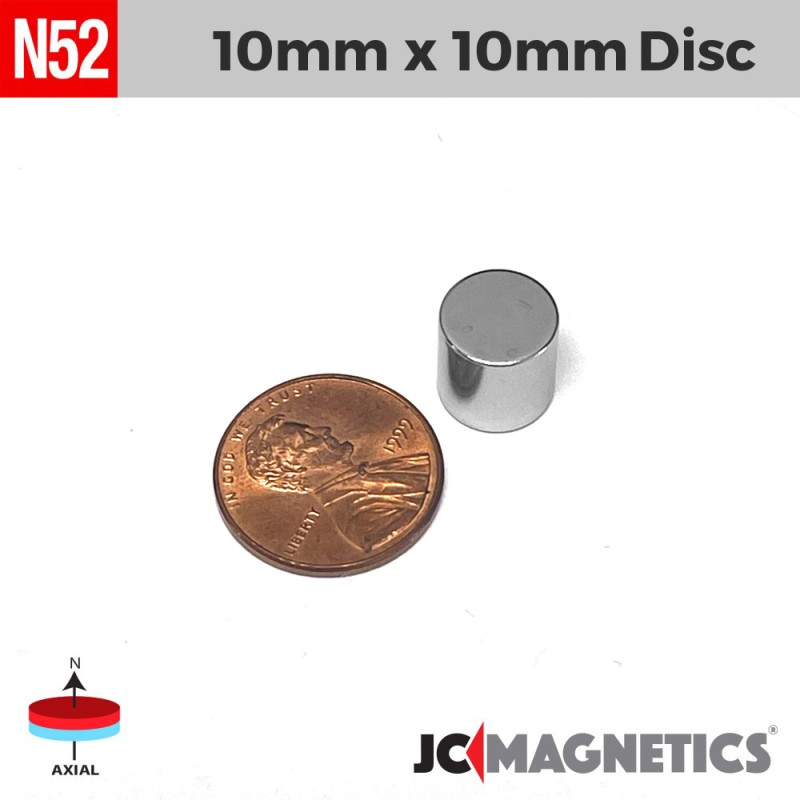

10mm x 10mm (25/64" x 25/64") Neodymium Cylinder Magnet – N52 Grade

Key Features:

• Dimensions: 10mm diameter × 10mm height (Approx. 25/64" × 25/64")
• Precision Tolerance: ±0.05mm
• Magnet Grade: N52
• Pull Force: Approx. 10.9 lbs – Exceptional vertical holding power
• Coating: Nickel-Copper-Nickel (Ni-Cu-Ni) triple-layer plating
• Magnetization: Axially magnetized (Poles on the flat circular 10mm ends)

Material Description:

Our 10x10mm N52 cylinders are designed for maximum flux density. Unlike thin discs, the 10mm depth allows for a much larger volume of magnetic material, resulting in a magnetic field that extends further from the surface. This makes them ideal for applications where the magnet must act through a gap or thick non-magnetic material (like plastic, glass, or wood).

Handling Advice: At nearly 9 lbs of pull force, these are extremely powerful. They will snap together with violent force from several inches away. Always handle with a firm grip and never leave them near sensitive electronics or credit cards. Use a sliding motion to separate them from a stack.

Warnings and Safety Information:

• Severe Pinch Hazard: Can cause blood blisters or skin tears if fingers are caught between two magnets. Handle with caution.
• Choking Hazard: Keep strictly away from children and pets.
• Medical Safety: KEEP AWAY from pacemakers and other implanted medical devices.
• Brittleness: Neodymium is a ceramic; these will shatter if allowed to slam into each other.

Applications:

• Industrial-grade Hall-effect sensors and magnetic switches
• Magnetic stir bars for laboratory and chemical mixing
• Heavy-duty hidden latches for thick-panel cabinetry and secret doors
• High-torque couplings for DIY robotics and RC projects
• Precision jigs and fixtures for woodworking and metal fabrication
